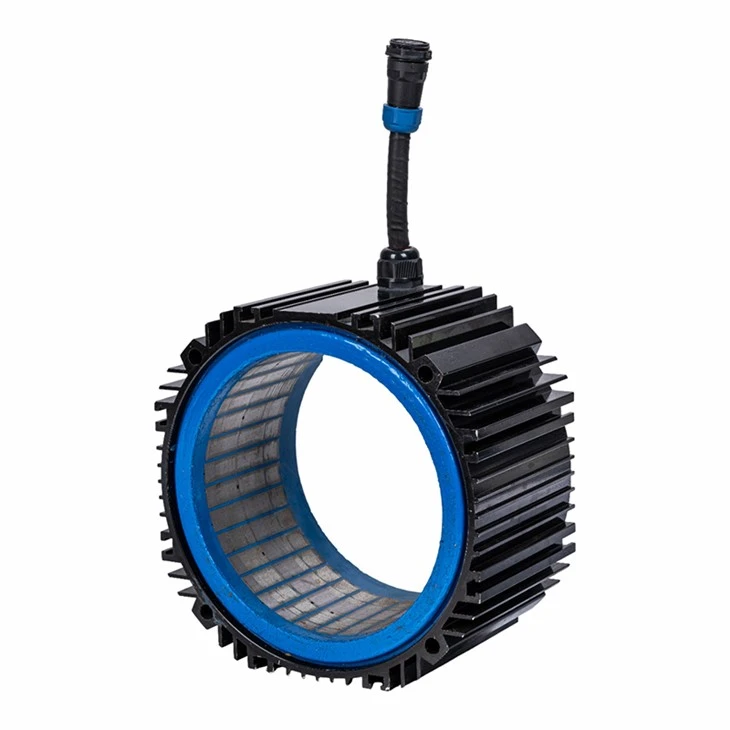

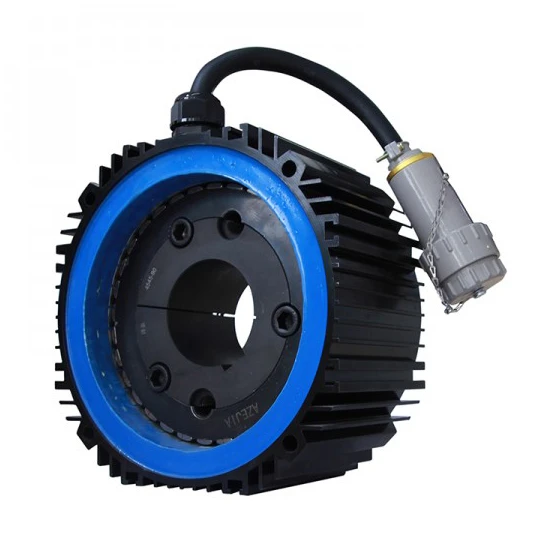

Direct Drive Blower Motor Deskripsyon
Estrikti transmisyon serye
Sèvi ak file koton aparèy la dirèkteman, li wotasyon coaxially ak nan menm vitès ak file koton prensipal la, fè li pi serye konpare ak motè tradisyonèl yo.
Gwosè kontra enfòmèl ant ak enpak siyifikatif
Konpare ak motè tradisyonèl ki gen menm pouvwa ak vitès, motè dirèk kondwi lè l sèvi avèk teknoloji motè leman pèmanan gen avantaj pou yo pi piti ak pi lejè pandan y ap prezante yon koyefisyan surcharge ki pi wo.
Segondè efikasite transmisyon
San yo pa bwat tradisyonèl, senti, ak pouli, pèt pouvwa transmisyon ki ba, amelyore efikasite enèji transmisyon.
Wide Power Range
Kraze nan seri tradisyonèl IEC ankadreman gwosè a, pouvwa ka koutim -fè pou kouvri seri a soti nan 2.2KW a 37KW, ak koupl pik 590Nm rive.
Aplikasyon
Aplikasyon yo enkli machin resi (dlo jè, jè lè, jakar, elatriye), machin trikote sikilè, moulen, elatriye.
|
Modèl |
Gwosè ankadreman |
||||||||||
|
LC |
KL1 |
LG |
LE |
KB1 |
KB2 |
KB3 |
KB4 |
LB |
LL |
||
|
288 |
330 |
-- |
5 |
5 |
5 |
17 |
269.7 |
160 |
|||
|
HSZ270 |
Gwosè bride |
Arbr Fen Gwosè |
|||||||||
|
LA |
LZ |
S KW |
RH |
||||||||
|
φ290 |
φ13 |
Sòti Arbr reglabl |
|||||||||
Paramèt teknik
|
Modèl Definisyon |
Rated |
Rated |
Rated |
Rated |
Surcharge |
Stator |
Refwadisman |
|
HSZ-PM38H270-270N07-SO5 |
380VAC |
2.7KW |
750rpm |
35Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Refwadisman natirèl |
|
HSZ-PM38H270-270N06-S05 |
380VAC |
2.7KW |
650rpm |
40Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Refwadisman natirèl |
|
HSZ-PM38H370-270N03-S05 |
380VAC |
3.7KW |
300rpm |
118Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Refwadisman natirèl |
|
HSZ-PM38H370-270N05-S05 |
380VAC |
3.7KW |
500rpm |
70Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Refwadisman natirèl |
|
HSZ-PM38H370-270N07-S05 |
380VAC |
3.7KW |
700rpm |
51Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Refwadisman natirèl |
|
HSZ-PM38H550-270NO3-S05 |
380VAC |
5.5KW |
300rpm |
175Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Refwadisman natirèl |
|
HSZ-PM38H550-270N05-S05 |
380VAC |
5.5KW |
500rpm |
105Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Refwadisman natirèl |
|
HSZ-PM38H550-270N07-S05 |
380VAC |
5.5KW |
700rpm |
75Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Refwadisman natirèl |
|
HSZ-PM38H550-270N10-SO5 |
380VAC |
5.5KW |
1000rpm |
53Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Refwadisman natirèl |
|
HSZ-PM38H750-270N05-S05 |
380VAC |
7.5KW |
50ORpm |
143Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Refwadisman natirèl |
|
HS7-PM38H750-270N07-S05 |
380VAC |
7.5KW |
750rpm |
95Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Refwadisman natirèl |
|
HSZ-PM38H750-270N70-S05 |
380VAC |
7.5KW |
1000rpm |
72Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Refwadisman natirèl |
|
HSZ-PM38H750-270N15-S05 |
380VAC |
7.5KW |
1500rpm |
48Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Refwadisman natirèl |
|
HSZ-PM38H900-270N07-F05 |
380VAC |
9KW |
750rpm |
115Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H900-270N10-F05 |
380VAC |
9KW |
1000rpm |
86Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H¹100-270N05-F05 |
380VAC |
11KW |
500rpm |
210Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H1100-270N07-F05 |
380VAC |
77KW |
750rpm |
140Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H1100-270N70-F05 |
380VAC |
11KW |
1000rpm |
105Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H1100-270N12-F05 |
380VAC |
11KW |
1200rpm |
87Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H1100-270N15-F05 |
380VAC |
11KW |
1500rpm |
70Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H1300-270N10-F05 |
380VAC |
13KW |
1000rpm |
124Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H1300-270N15-F05 |
380VAC |
13KW |
1500rpm |
83Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H1500-270N10-F05 |
380VAC |
15KW |
1000rpm |
143Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H1500-270N13-F05 |
380VAC |
15KW |
1300rpm |
17ONm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H1500-270N15-F05 |
380VAC |
15KW |
1500rpm |
96Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H1800-270N07-F05 |
380VAC |
18KW |
750rpm |
230Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H1800-270N10-F05 |
380VAC |
18KW |
1000rpm |
172Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H1800-270N15-F05 |
380VAC |
18KW |
1500rpm |
115Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H2200-270N10-F05 |
380VAC |
22KW |
1000rpm |
210Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H2200-270N12-F05 |
380VAC |
22KW |
1200rpm |
175Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H2200-270N15-F05 |
380VAC |
22KW |
1500rpm |
140Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H3000-270N15-F05 |
380VAC |
30KW |
1500rpm |
191Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
|
HSZ-PM38H3700-270N15-F05 |
380VAC |
37KW |
1500rpm |
235Nm |
Pi gran pase oswa egal a 2.5 |
Poting stator |
Fòse refwadisman |
